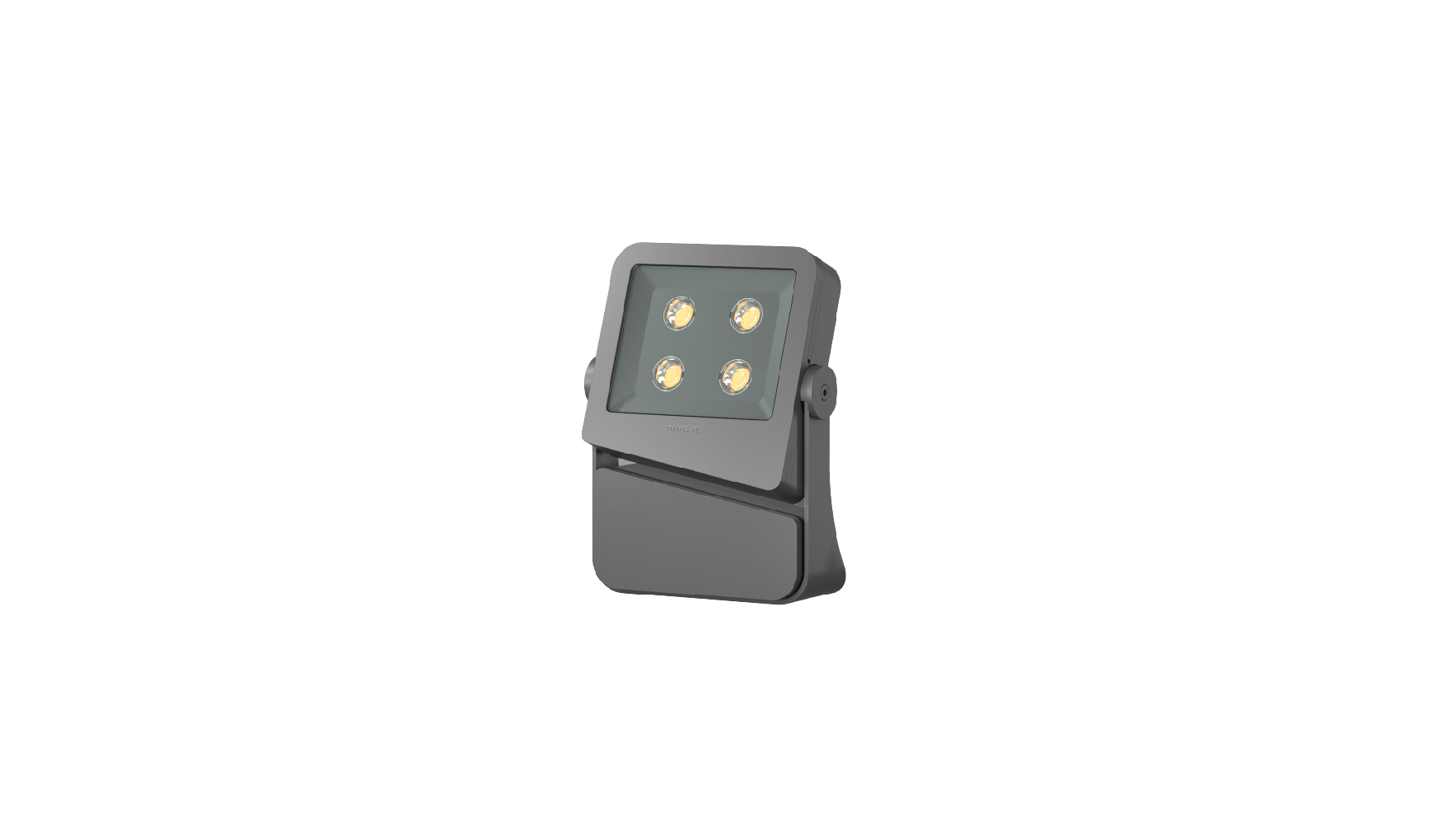

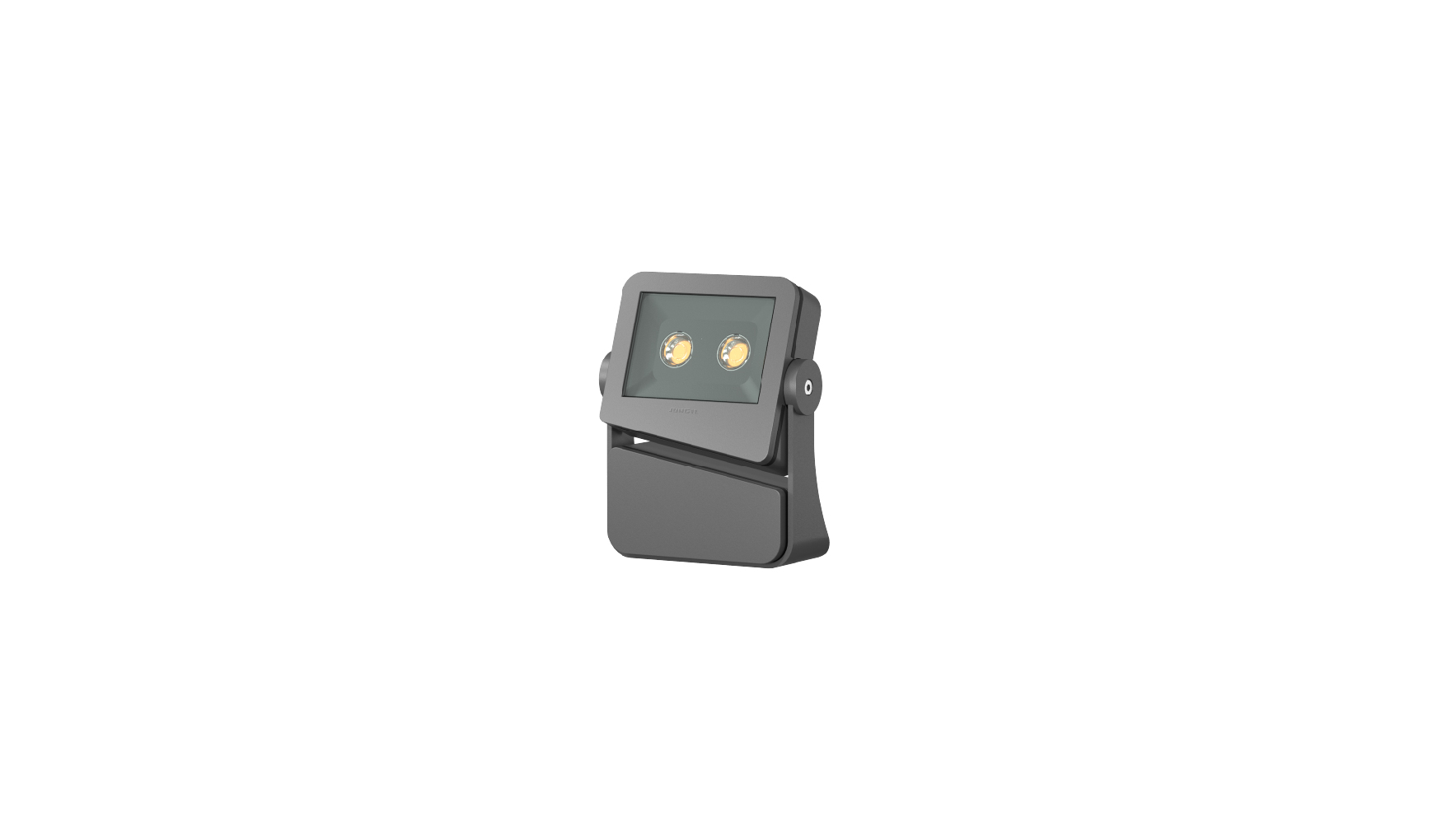

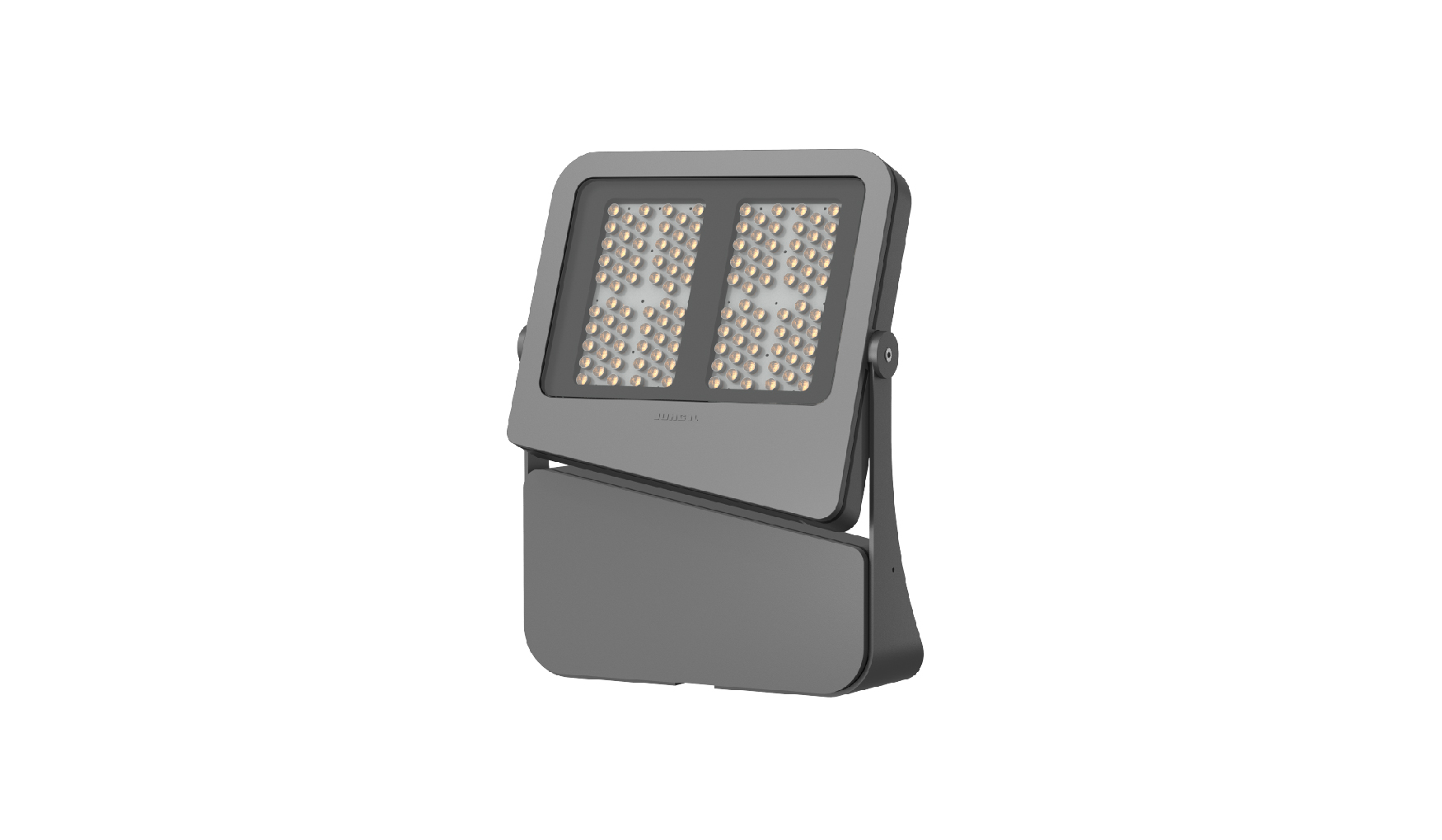

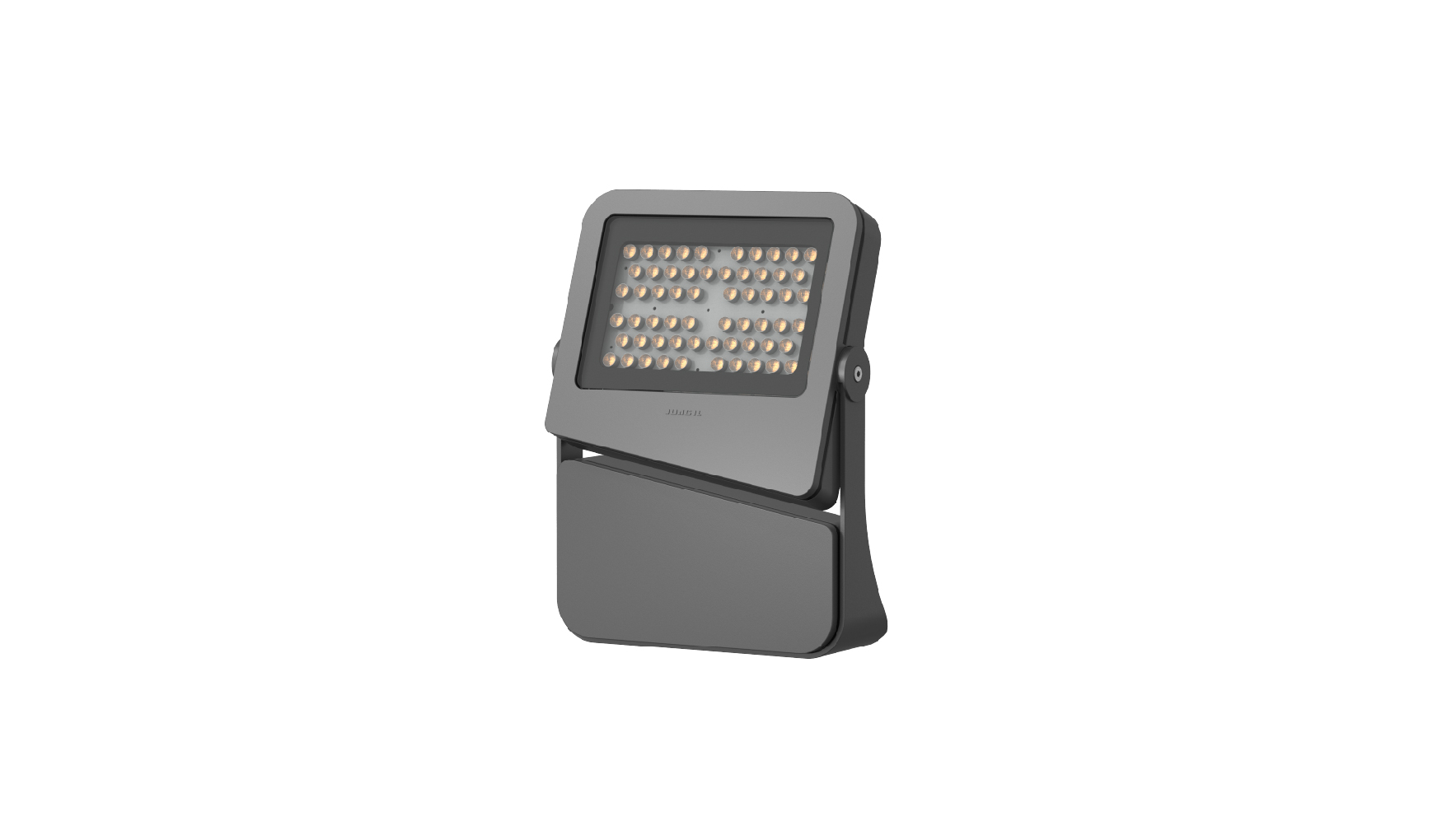

홈JIOF-948

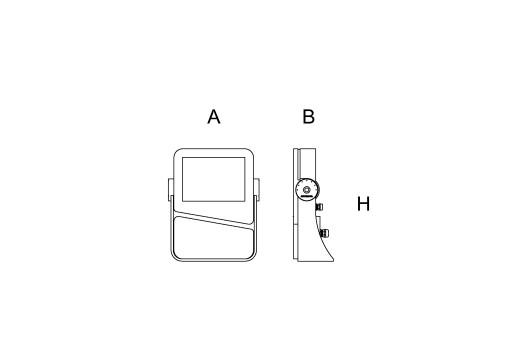

| MODEL | LAMP | a | b | h | BASE | lm/cd |
|---|---|---|---|---|---|---|
| JIOF-948-1 | LED 20W | 205±2 | 50±2 | 255±5 | ||
| JIOF-948-2 | LED 40W | 245±2 | 50±2 | 326±5 | ||
| JIOF-948-3 | LED 60W | 321±2 | 50±2 | 422±5 | ||
| JIOF-948-4 | LED 90W | 321±2 | 50±2 | 422±5 | ||
| JIOF-948-5 | LED 120W | 444±2 | 50±2 | 578±5 | ||
| JIOF-948-6 | LED 180W | 444±2 | 50±2 | 578±5 |
SPEC
Product Material
- High performance LED module (COB/948-1,2)
- High performance LED module (948-3,4,5,6)
- Polycarbonate lens
- Tempered glass (Clear)
- Cast aluminum
- Input AC 220V 60㎐
- Powder coated paint
- Color temperatrue 3000K, 4000K, 5000K
- Main color - Dark gray

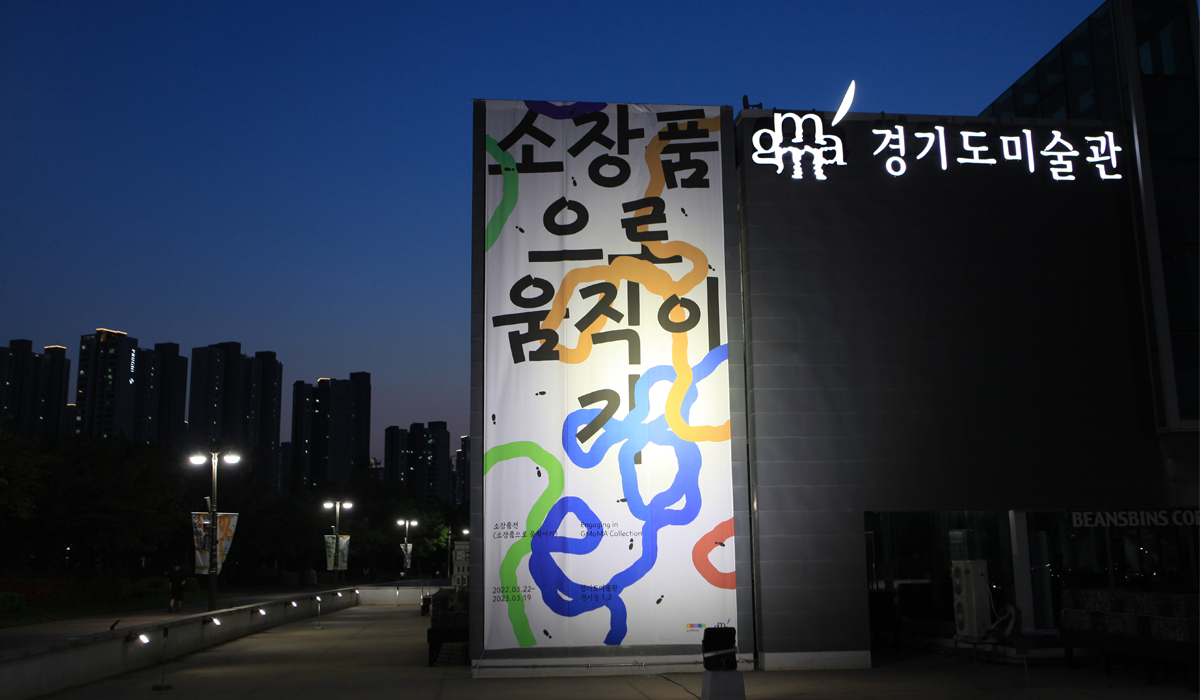

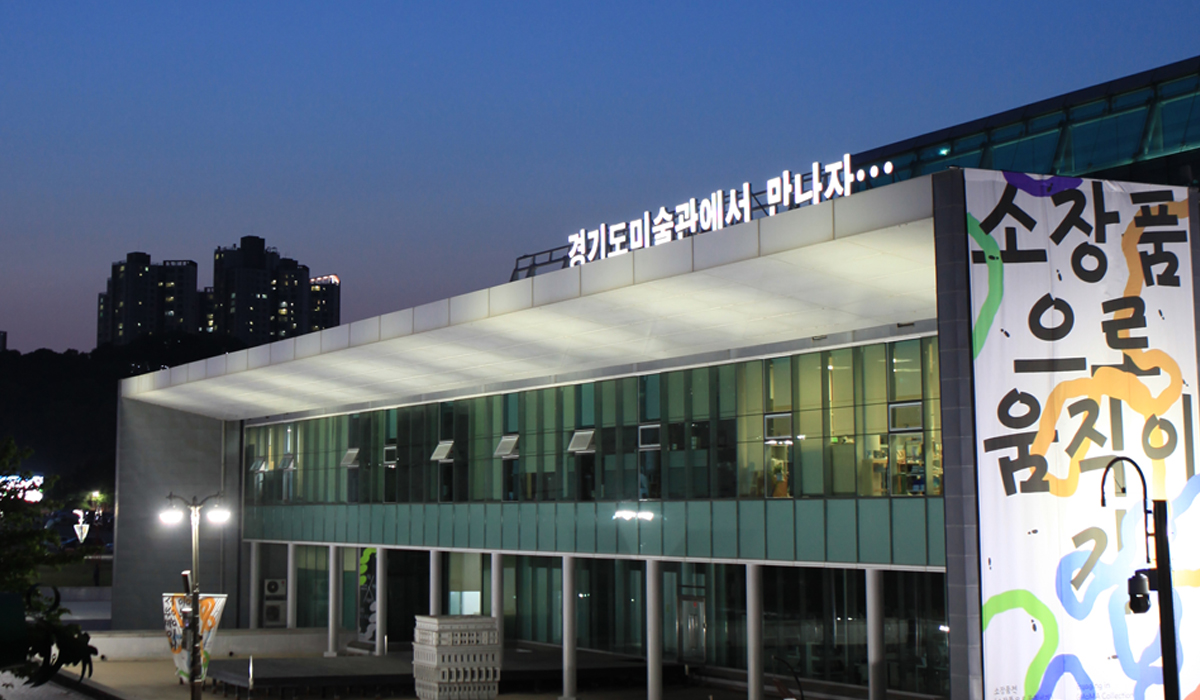

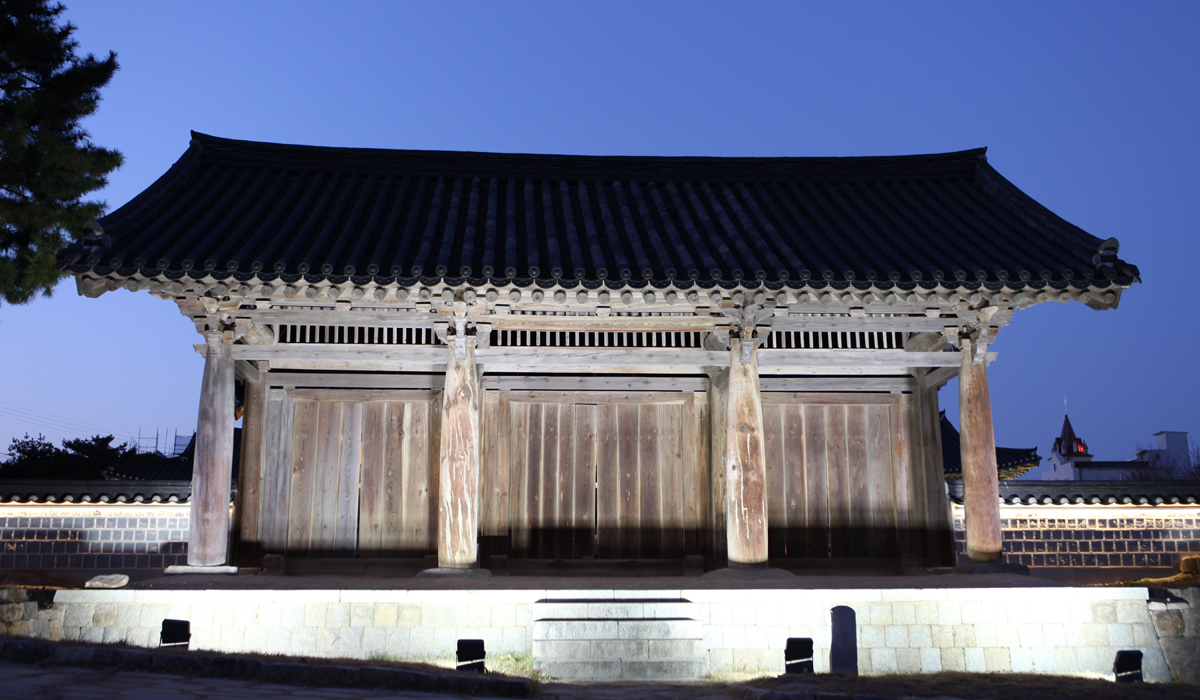

PROJECT
-

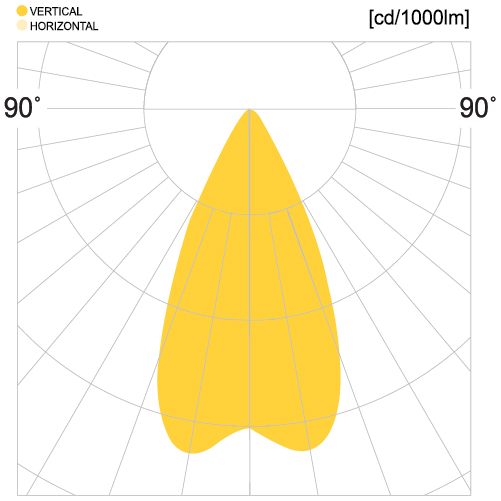

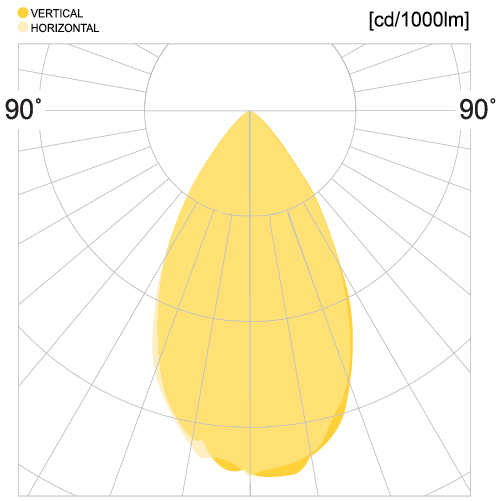

JIOF-948-1~2 (60D)
-

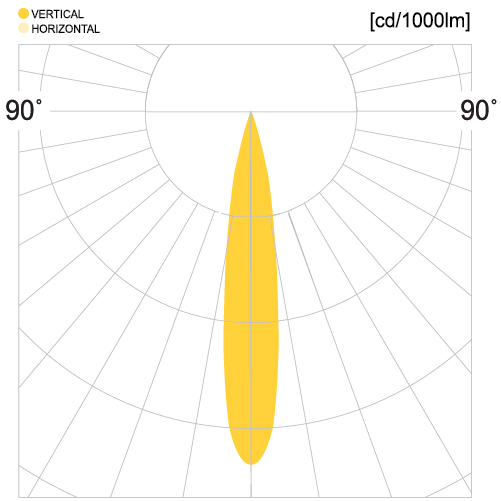

JIOF-948-3~6 (15D)
-
JIOF-948-3~6 (60D)
